Economical Battery Test Equipment : MCB Series

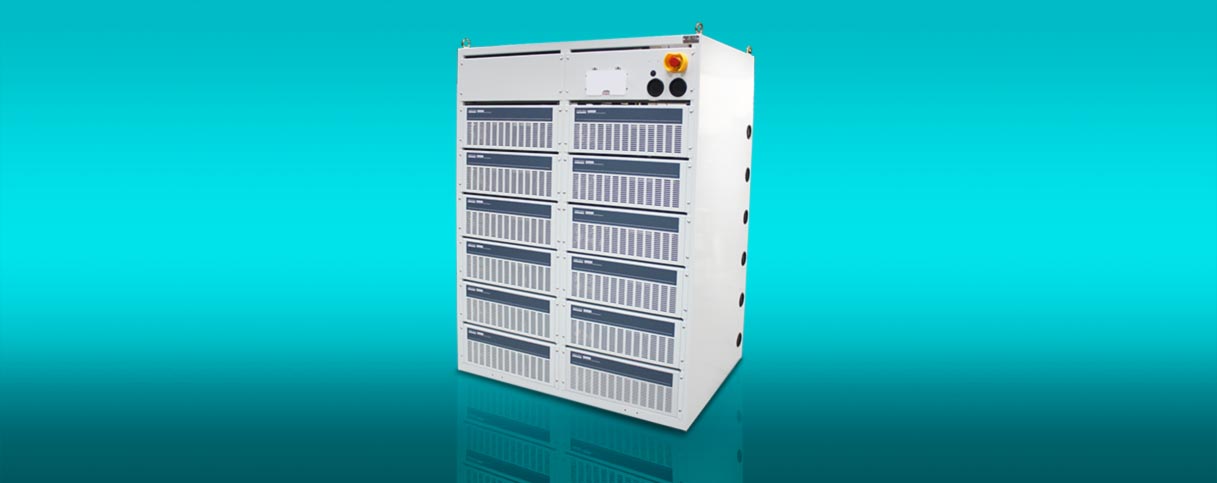

MCB Series : Economical Battery Test Equipment

MCBVer2

Intro:
MCB is the economical battery test equipment used by laboratory and startup companies. It offers experiment-grade output/measurement precision and rapid data recording that can help users evaluate battery performance. In additional to operate each channel independently, the system can support parallel connections among channels to increase the flexibility of current output. Equipped with an user-friendly operating software, it is easy to operate and has advanced reporting and data analysis capabilities. With limited budget, the system is considered a good value.

  • 0.03% voltage output accuracy; 0.04% current output accuracy.
  • 100ms data recording speed.
  • BMS data collector, auxiliary temperature, auxiliary voltage, chamber and other accessories are available.
null
BMS data collector: SMBus, I2C, HDQ, CANBus, ModBus
null
Discharge to 0V
ModelMCB Series
AC PowerCustomized According To Client Needs
Loading Range
Charge
Discharge

0~100V*
2~100V* (Option: Discharge to 0V)
Constant Voltage
Maximum
Resolusion
Accuracy

Depend on Spec*
16 bit
±0.04% F.S.
Constant Current
Maximum

Resolusion
Accuracy

Depend on Spec*
16 bits
±0.03% F.S.
Constant Power
Maximum
Resolusion
Accuracy

Depend on Spec
16 bit
±0.07% F.S.
Data Recording Time100ms
Communication InterfaceEthernet
Ambient23°C±2°C; 20~90 HR
Optional FeaturesDCIR Measurement、ACIR Measurement、Parallel Connections among Channels、BMS & Gas Gauge Data Collection、Chamber Integration、Data Analyzer、Automated/semi-automated activation
Accessory
BMS & Gas Gauge Data Collector、Auxiliary Voltage、Auxiliary Temperature、Chamber、Customized Fixture、Auto-Calibrator、Barcode Scanner、Alarm Buzzer

*Accept customized request

ModelVoltage(V)Current (A)ModelVoltage(V)Current (A)
MCB 5V/3A53MCB 20V/30A2030
MCB 5V/5A55MCB 60V/10A6010
MCB 5V/10A510MCB 60V/15A6015
MCB 5V/20A520MCB 60V/20A6020
MCB 5V/30A530MCB 60V/30A6030
MCB 5V/50A550MCB 60V/60A6060
MCB 5V/100A5100MCB 60V/80A6080
MCB 5V/200A5200MCB 60V/100A60100
MCB 5V/300A5300MCB 60V/200A60200
MCB 5V/400A5400MCB 60V/300A60300
MCB 5V/500A5500MCB 60V/500A60500
MCB 5V/1000A51000MCB 100V/100A100100
MCB 20V/5A205MCB 100V/200A100200
MCB 20V/10A2010MCB 100V/300A100300
MCB 20V/20A2020MCB 100V/500A100500

DCIR Measurement

High-power battery module DC internal resistance

ACIR Measurement

High-power battery module AC internal resistance

Parallel Connections among Channels

BMS & Gas Gauge Data Collection

During battery modules/ packs testing, the Gas Gauge/ BMS data is retrieved and recorded.
The data obtained can be used as the condition for program step change or providing protection.
1. Supports communication protocols such as SMBus, I2C, HDQ etc. for IT batteries and Modbus, CANBus etc. for power batteries.
2. Supports CAN .dbc file editing and import.

Chamber Integration

The synchronous control of chambers can be achieved during the testing processes.
Temperature and humidity levels can be adjusted to simulate different environments for measuring the battery’s performance.

Automated/semi-automated activation

Advanced Data Analysis

With advanced data analysis feature, a variety of test data presentations could be adjusted according to the needs of researchers, such as text and graphical reports, self-defined X and Y-axis parameters on graphs and graphs zoom-in / zoom-out. It also helps researchers to easily analyze the data from cycle test. Data from each cycle can be superimposed and drew on a single chart to produce a lifecycle test report. Evaluating test results and finding variation are easy! Moreover, test data can be exported in csv format and manipulated in the third-party software that researchers are familiar with, improving the data usability.

BMS/ Gas Gauge Data Collector GDA 300 Series

GDA 300 records the static/ dynamic parameters of the BMS in energy/ power batteries. It supports SMBus, I2C, HDQ, Modbus, CANbus and other communication protocols that are commonly used in energy and power batteries, and it is scalable. With GDA 300, users are allowed to define customized parameters as step cutoff condition while running battery test. Additional parameters can also be defined by researchers to collect and analyze advanced data.

ModelGDA 300 Series
Applicable Communication InterfaceSMBus, I2C, HDQ, CANBus, ModBus
Max. Channels128
Dimension (mm)117W*61D*24H
Weight (g)250

Auxiliary Voltage/ Auxiliary Temperature

Auxiliary voltage and auxiliary temperature are for collecting the voltage and temperature data of a single cell in the battery pack. Collected data can be used as step cutoff conditions while running the battery test, improving the flexibility of the production line and laboratory.

ModelAuxiliary Voltage ES-100B
Channels24
Measurement Range±64V,±32V,±8V
Measurement Resolution16 bit
Accuracy0.02% F.S.
Data Recording Time100ms (24CH)
ModelAuxiliary Temperature ET-100B
Channels24
Measurement Range*-50°C~125°C
Measurement Resolution0.1°C
Accuracy±1°C (-40°C~90°C)
Temperature SensorThermistor
Supported Type103JT
Data Recording Time100ms (24CH)
ModelAuxiliary Temperature ET-100C
Channels16CH8CH8CH16CH
Scanning Speed4CH/s (16CH/4s)4CH/s (16CH/4s)4CH/s (16CH/4s)4CH/s (16CH/4s)
Accuracy±1°C±1°C±1°C±1°C
Resolution0.1°C0.1°C0.1°C0.1°C
Temperature SensorThermocoupleRTDThermistorDiode
Supported TypeType J, K, E, N,

R, S, T, B

PT-10, PT-50, PT-100, PT-200,

PT-500, PT-1000, NI-120

44004 2.252kΩ, 44005 3kΩ,

44007 5kΩ, 44006 10kΩ,

44008 30kΩ
3904
Measurement Range*-265~800°C-200~800°C-40~150°C-60~130°C

*Depend on chosen thermal sensors

Universal/ Customized Fixture

According to customer requests, CTE provides a variety of universal fixtures and customized fixtures.The universal fixture is specially designed for cylindrical and prismatic batteries. It is suitable for a wide range of battery specifications, and can be adjusted by customers to work with the batteries to be tested. The non-base plate design allows the battery to be lifted, reducing the thermal impact on battery test. Moreover, the removable battery compartment also makes changing battery convenient and flexible. For customized fixtures, please contact Chen Tech Electric.

Universal Fixture ApplicationCylindrical and Prismatic Batteries
Suitable Battery Size (mm)18~100W*52D*55H
Number of Battery Holders4~24
Loadable CurrentUnder 40A
Materials
Outer Frames
Battery Box

Stainless Steel
Bakelite
Size (mm)
Main Body
Battery Box

340W*423D*586H
319W*85D*239H

Auto Calibrator ACP2 Series

ACP is especially designed to improve the efficiency and precision of calibration for CTE test equipment. It is applicable for CTE equipment with maximum voltage under 20V and maximum current lower than 100A. Its flexible and scalable design can be expanded to include up to 8 meters, thus ACP is capable of calibrating 8 testing channels simultaneously, which greatly reduces labor cost and time. Also, removable shunts and meters are built-in, making it easy to calibrate and maintain.

ModelACP2 L SeriesACP2 N SeriesACP2 M SeriesACP2 B Series
AC PowerAC110/220VAC110/220VAC110/220VAC110/220V
Applicable Spec20V/1A and less20V/3A~20A and less20V/20A~50A and less20V/50A~100A and less
Applicable

MCF Lite Series
MCL2 Mini Series
BT 2000 Series
MCP Plus Series

MCB Series
MCL2 Series
MCL2 Mini Series
ABT 1000 Series
GBT 1000 Series
BT 2000 Series
MCP Plus Series

MCB Series
MCL2 Series
ABT 1000 Series
BT 2000 Series
MCP Plus Series

MCB Series
MCL2 Series
ABT 1000 Series
BT 2000 Series
MCP Plus Series

Barcode Scanner

Alarm Buzzer
