Project Scope of Chen Tech
1. Development of Low-Risk Retired Battery Management Technology
-
Pre-input Verification Mechanism for Retired Batteries: Designed a verification mechanism covering traceability, visual inspection, and protection function checks to ensure baseline safety.
-
Cell & Core-Pack Level Pre-input Inspection: Fast SOH (State of Health) estimation for cells and core packs prior to deployment, with an error margin of <±8%.
-
Module-Level Online SOH Monitoring: Continuous online SOH monitoring at the module level, with an error margin of <±3%.
-
In-Use Risk Feature Detection & Rapid Screening for Retired Batteries: * Achieved a >90% accuracy rate for the rapid detection of “balancing cycle activation” and “balancing failure.”
-
Implemented multi-level warning systems based on dynamic detection of:
-
Bottleneck cell features (probability of minV_ID ≧70%)
-
Work-and-rest behavioral features (standardized deviations: LVS, HVS)
-
Temperature profile features (temperature variance ≦5℃).
-
-
2. Development of High-Efficiency Intelligent Microgrid Control System
-
Asynchronous Adaptive Charge/Discharge Algorithm among Battery Packs: Enables asynchronous operations between battery packs with a response and decision-making time of 0.9 seconds.
-
In-Operation Battery Decommissioning Mechanism: Allows dynamic decommissioning of battery packs during operation, with a battery branch power redistribution response time of 0.292 seconds.
-
Performance Verification of Low-Carbon, Full-Green-Energy Microgrid: Achieved a conversion efficiency of 93.3% under direct green energy supply.
3. Full-Green-Energy Microgrid Integration and Field Validation
-
Green Energy Power Supply Design: Designed for an average daily power generation of 82.1 kWh, with a maximum field-tested power generation of 98 kWh.
-
Thermal Testing of Battery Modules in Full-Green-Energy Microgrid: Field test results showed an actual operating temperature of 40℃ for the battery modules at an ambient temperature of 36℃.
-

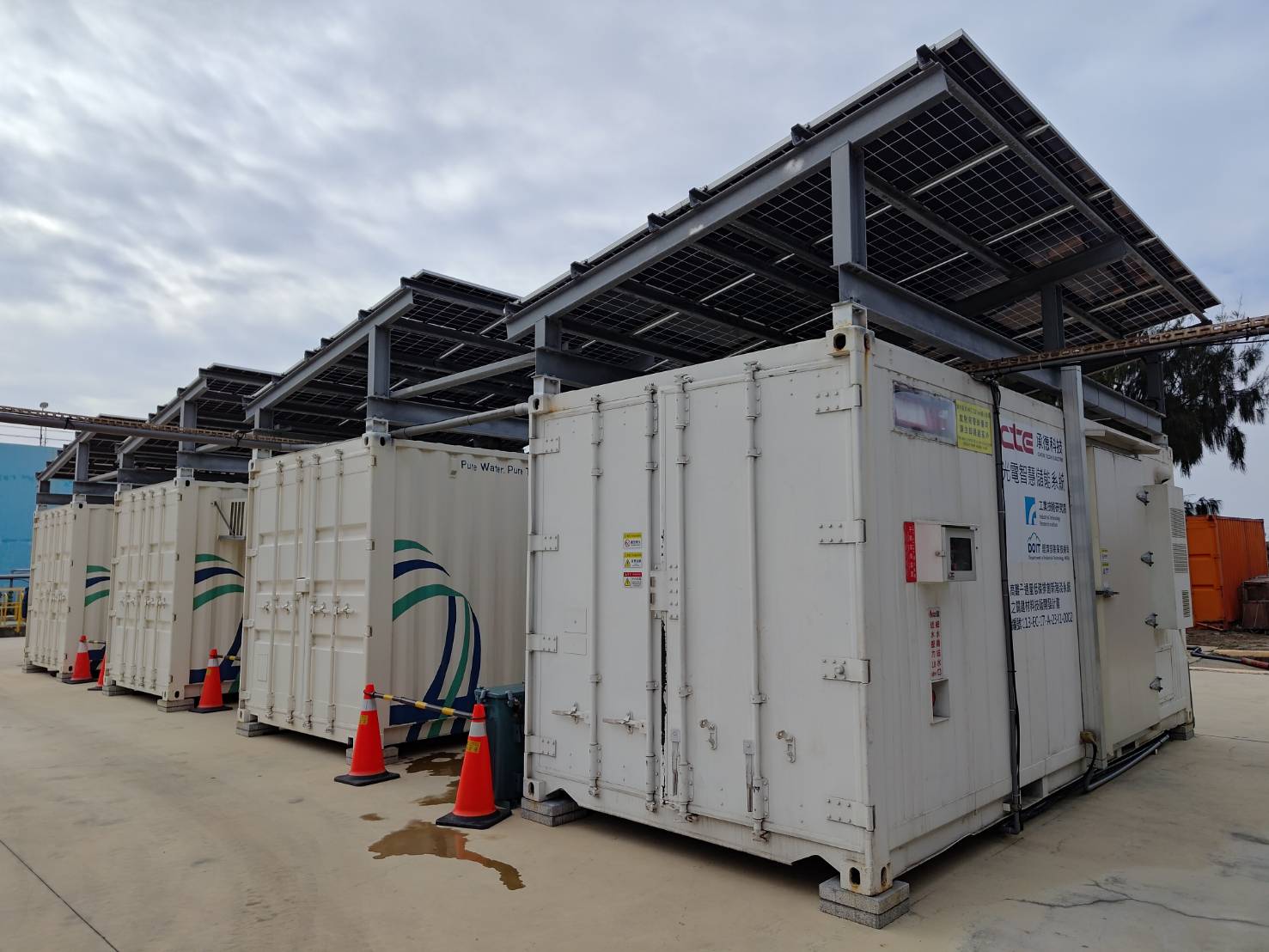

Field Deployment of Low-Carbon, Full-Green-Energy Microgrid: Achieved an actual peak power supply capacity of 90 kWh at the deployment site.
Current Achievements
The overall R&D deliverables of this project are highly comprehensive, demonstrating exceptional technical innovation and strong alignment with government policies. With field validation successfully completed, the project possesses significant potential for subsequent application expansion and commercial development. These research achievements fully meet the advanced technology R&D objectives of the A+ Industrial Innovation R&D Program, reflecting an overall excellent execution performance.
The related product line, the SSMESS Series, has officially been launched in the market. To learn more about product details and technical specifications, please visit the official website of Chen Tech.
